Program Nissan Navara D40 2011 key by Auro OtoSys IM100

4/19/2018


New feedback: Nissan Navara D40 2011 all keys lost done with Auro OtoSys IM100/IM600 tablet key programmer.



Connect IM100/IM600 tablet and VCI with vehicle
Select IMMO function>Nissan->System selection->Immobilizer/Smart system->Immobilizer/Smart system->When performing key registration->Register/Erase key

auro-im100-Nissan-Navara-1
auro-im100-Nissan-Navara-2
auro-im100-Nissan-Navara-3
auro-im100-Nissan-Navara-4
auro-im100-Nissan-Navara-5

Insert ignition key into ignition key cylinder and switch ignition to ON position

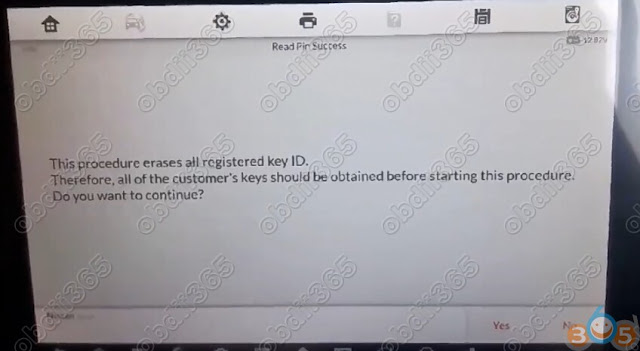

This procedure erases all registered key ID.Therefore,all of the customer's keys should be obtained

before starting this procedure

auro-im100-Nissan-Navara-6

Perform key registration. Operate according to the following procedures.


1:Remove inserted ignition key fruni ignition key cylinder.

2:tnsert unregistered ignition key into ignition key cylinder, turn ignition switch to the ON position, and then wait for 5 seconds or more.

3:Check that security indicator blinks 5 times.

4:Turn ignition switch to the OFF position, remove ignition key, and then wait for 3 seconds or more.

5:A maximum of 5 ignition keys can be registered by repeating procedures from step 2 to step 4 using unregistered ignition keys.  Touch OK to end  OtoSys IM100 key registration mode.

auro-im100-Nissan-Navara-7

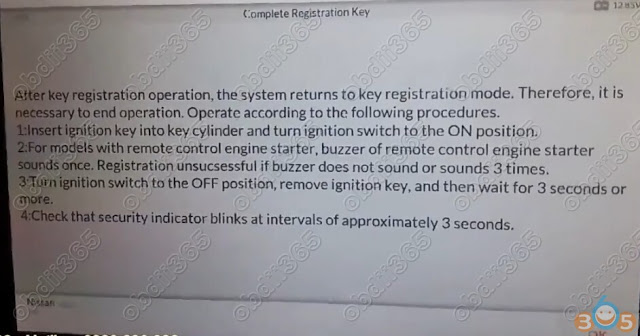

Complete Registration Key.


After key registration operation, the system returns to key registration mode. Therefore, it is necessary to end operation. Operate according to the following procedures.


1:Insert ignition key into key cylinder and turn ignition switch to the ON position.

2:For models with remote control engine starter, buzzer of remote control engine starter sounds once. Registration unsucsessful if buzzer does not sound or sounds 3 times.

3:Turn ignition switch to the OFF position, remove ignition key, and then wait for 3 seconds or more.

4:Check that security indicator blinks at intervals of approximately 3 seconds.

auro-im100-Nissan-Navara-8

Operate according to the following procedures.

1:Check that each of all registered key can start engine. Touch [End].

For remote control engine starter, check operation according to remote control engine starter installation manual.

auro-im100-Nissan-Navara-9

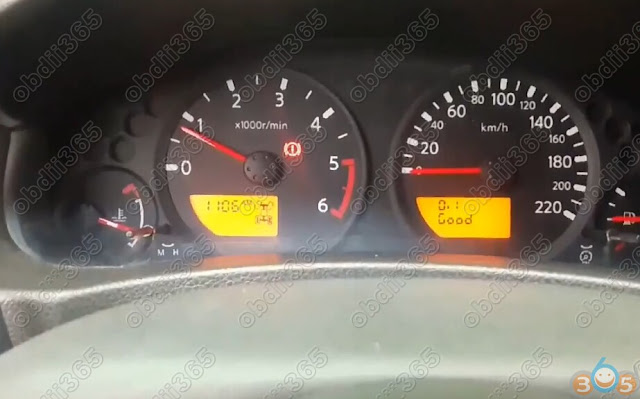

Succeed.

auro-im100-Nissan-Navara-10

http://www.obdii365.com/


If you need IM600, please contact :
Email: Sales@OBDII365.com
Skype: OBDII365.com

Auro OtoSys IM100 will Add Ford Holden BMW Benz etc

4/17/2018


Q1: Will Auro IM100/IM600 make key on Australian Ford and Holden?
Q2: I cannot see Ford IMMO option in IM100, does IM100 support Ford key programming?

A:
These features currently is not yet ready in IM100/IM600, but Auro diag soon release more immo functions in the the coming months.
Update Coming List
Region Make Description
ETA
Auro OtoSys  IM100 IM600
USA Ford Support Key learning with C-MAX. Escape,Kuga, Expedition F-150 F-250 F-350 EcoSport ,and other models YES YES
GM Supports key learning on 2017 Buick, Cadillac, Chevrolet and other models YES YES
Australia Holden Support key learning on Astra,Barina, Clibra,Colorado. Combo, Cruze and other models YES YES
Ford Supports key learning on Falcon,Fiesta,Focus,Kuga,Mondeo,
Transit and other models
YES YES
Asia TATA Supports key learning on Arta, Indian, Vista, Manza, Zest, Bolt, Tiago and other models YES YES
Mahindra Supports key learning on Scorpio, Xylo, XUV500,Quanto,NuvoSport and other models YES YES
Maruti Suzuki Supports key learning on Alto 800,Swift, Baleno.S-cross,Celerio and other models YES YES
Hyundai/Kia Support IMMO Password reading for 46,47 and 8A chip smart keys YES YES
Mitsubishi Supports all keys lost on models with CAN Protocol, such as ASX and Outlander YES YES
Toyota/Lexus Supports all keys lost for four smart key types including:94/D4,88/8A,A9 and 98 YES YES
Europe Volvo Supports smart key programming, including smart key learning and all smart keys lost YES YES
BMW Supports key learning, all keys lost and ECU renew for CAS4/4+system YES YES
BMW Supports key learning, all keys lost and ECU renew for CAS3/3+system YES Supports with UP400
Benz Supports key learning, ELV read & write(OBD), ELV read & write(IR) for DAS3 system
Supports IR key read & write for IR key system
YES YES
VAG Support IMMO IV Megamos 48 key programming Pay as you go Pay as you go+ token
VAG Supports Read IMMO data for more Engine systems YES YES
auro-otosys-im100
*If you need IM600, please contact Email: Sales@OBDII365.com
Skype: OBDII365.com

http://www.obdii365.com/info/auro-otosys-im100-im600-update-coming-list-54566.html

How to Write and Code BMW VIN after FRM2 Update

4/13/2018



Purpose: write/code VIN after FRM2 update

Car: 330d 2006

Tool: BMW ICOM emulator

Software: NCS expert, Tool32, WinKFP



Tutorial: Upgraded to FRM2 – how do i code it?



The basic steps are:

1. Install FRM2
2. Change FRM2 VIN to yours. Flash FRM2 with WinKFP comfort mode with your VIN. Or use Tool32 to change VIN as above.
2.5. Verify VIN change with Tool32.
3. Copy CAS VO (FA) to FRM with NCSexpert.
4. Change date with NCSexpert.
5. Code to default with NCSexpert.

Exact instructions for each step are discussed and available in the following parts.



It’s very simple.

1. Open Tool32
2. Plug in cable
3. Press F3 and choose the FRM87.prg or whatever FRM you have (see from INPA uif)
4.Select job c_fg_schrieben
5. Enter your FULL VIN (including checksum) into arguments field
6. Execute job

You can check the VIN using job ‘c_fg_lesen’

Once done use NCS EXPERT to copy your CAS FA string to FRM / change date then code to default with expertmode.



Btw, when you enter your VIN you must use FULL VIN. Which is VIN number with a checksum at the end. You can see you full VIN in NCS expert when you do any coding.



Note: Step 2 means you won’t need to use Tool32 at WinKFP can set VIN also…

The basic steps:
1) Remove FRM, install FRM2.
2) Use WinKFP to program the module, make sure to enter your VIN-number before programming.
3) Switch to NCS-EXPERT. Get your Vehicle Order from the CAS module (as we are unsure of what the FRM2 module contains.
4) Write the Vehicle Order to module “FRM” using job “FA_WRITE”
5) Go back to the main menu (or restart ncs-expert) and get the vehicle order from the “NFRM” module. Make sure NFRM returns YOUR VIN and YOUR VO. We want the VIN (FG) and VO (FA) to be the same in both CAS and NFRM.
6) You now need to do the trick described by 4711 a couple of posts back, i.e. change the production date in the VO to at least #0307. If you don’t do this, ncs-expert will not list NFRM (=FRM2) in the “Process ECU”-list and you won’t be able to code it. Change the VO using the “Enter FA” option – remove your production date and enter #0307 (meaning march 2007).
7) Now click “Process ECU” and select “NFRM”

Then just code to default with expert mode.



Reference: Youtube video – E90 VIN change with NCS Expert

How to Read and Write EWS3 EWS4 with Xprog M

4/10/2018


What is the best tool to work for BMW ews3 and ews4?
XPROG-M is the cheapest & best tool for read and write. For 100%

Here you go.

Part 1: Xprog r/w EWS4
Part 2: Xprog r/w EWS3

In detail…

Part 1: Xprog reads and writes EWS 4.4: success!

EWS 4 can be done with no problems.

Test:
BMW X3 E83 2006 with immo EWS 4.4, assembled on a Motorola MC9S12D64 microcontroller , with a 2L86D mask .
xprog-read-write-ews4-1
xprog-read-write-ews4-2
xprog-read-write-ews4-3
xprog-read-write-ews4-4
xprog-read-write-ews4-5
xprog-read-write-ews4-5

Important note:
Before reading EWS4 (4.3 & 4.4) you must check label on relay , if you see Made in JAPAN you don’t have problem for reading(R260 clone – R270 – Xprog HQ clone or original) but if you see Made in China you %50 have problem , if you try for reading eeprom %50 possible lost eeprom or mcu
if relay Made in china only via xprog HQ clone or original with +12v power external and lift extal pin.


Part 2: Xprog-m reads and writes EWS3: success!

EWS3 can read/write in circuit with xprog.
but you need lift pin TXD

Wiring:
On EWS:
Pin 9 is GND,
Pin 10 is 12V,
Pin 13 is K-Line

Test:
-EWS3 with 0D46J type HW03 SW08 can be read and written by K-Line.
-EWS3 with 0D46J, 2D47J type HW02/HW03 with SW01, SW02, SW03, SW04, SW05 could not be read and written by K-Line. Should be removed from the board and read in adopter.
2D47J If you read in adopter and read as 2D47j Secure.
xprog-read-write-ews3-1
xprog-read-write-ews3-2
xprog-read-write-ews3-3
xprog-read-write-ews3-4
xprog-read-write-ews3-5
xprog-read-write-ews3-6
xprog-read-write-ews3-7
xprog-read-write-ews3-8
xprog-read-write-ews3-9
xprog-read-write-ews3-10
xprog-read-write-ews3-11
xprog-read-write-ews3-12
xprog-read-write-ews3-13
xprog-read-write-ews3-14
Important note:
Desolder it ,and read with a ETL programming tool– is the best and safer way
through k-line is lottery

To be sure lift both pins,but why not than read on board
because usually has like a red glue all over the board that its not very easy to burn with hot air. This glue is also under the mcu…

http://blog.obdii365.com/2018/04/10/xprog-m-read-write-bmw-ews3-ews4/

OBDSTAR adds GM IMMO Pin Code Function April 2018

4/9/2018


OBDSTAR released new upgrade adding GM IMMO Pin code reading via OBD on April, 9th, 2018.

GM IMMO Update:
Buick LaCrosse (-2017)
Buick GL8 (-2017)
Buick Encore (-2017)
Buick Trax (-2017)
Buick Regal (-2017)
Buick Excelle (-2015)
Chevrolet Cruze (-2017)
Chevroley Aveo
New Cadillac (-2017)

Free update your OBDSTAR X300 DP/X300 pro3 full version with this feature!!!
obdstar-update-gm-immo
http://www.key-programmer.org/2018/04/09/obdstar-adds-gm-immo-pin-code-reading/

Auro OtoSys IM100 Program Nissan Altima 2018 Smart Key

4/5/2018



Here’s the guide of Auro OtoSys IM100 programming a 2018 Nissan Altima 5-button Smart Key bypassing the security. This functionality is available on the both IM100 and the OtoSys IM600.

Connect IM100/IM600 tablet with vehicle
Select IMMO function->Nissan->Immobilizer smart key programming->TEANA->2016/06 up

auro-im100-2018-nissan-altima-1
auro-im100-2018-nissan-altima-2
auro-im100-2018-nissan-altima-3
auro-im100-2018-nissan-altima-4

Establish communication
Scanning vehicle system
Select Immobilizer information registration->Register key

Set the vehicle to the following status, and then press OK
-Ignition switch or power switch: LOCK
-Hazard switch: ON (For preventing BCM from entering into CAN cummunication sleep)
-P(A/T) or neutral (M/T)
-Battery voltage: More than 12.5V
-Steering: Not in fully locked

auro-im100-2018-nissan-altima-5

Operate according to the following procedure:

auro-im100-2018-nissan-altima-6

1.Key switch blinks for 5 seconds. Touch the i-Key to key switch while key switch is blinking. A buzzer in the combination meter sounds twice when I-Key is recognized by the vehicle.

Caution: Antenna is installed in upper part (logo side) of I-Key. Touch logo of the l-Key the center of the key switch. Touch [Next] when preparation is complete.

Operate according to the following procedure:

auro-im100-2018-nissan-altima-7

1:Without depressing the brake, press the ignition switch continuously for 2 or more seconds until the power switch turns ON.
2:Ignition switch changes from LOCK to ON.

auro-im100-2018-nissan-altima-8
auro-im100-2018-nissan-altima-9

http://auro-otosys.blogspot.com/2018/04/auro-otosys-im100-im600-program-2018-nissan-altima-smart-key.html

Easiest Way to Change BMW X5 F15 FEM Odometer

4/3/2018



Purpose: To do mileage correction

The car: 2014-2015 BMW X5 F15

BMW-X5-2014

Have tested most odometer correction tools popular in the market..

Some success and some failure

Here are the test result and suggestion. Hope it helps you out.



Digiprog 3: NO

Digiprog 3 v4.94 will not do bmw f15. Digiprog can not erase original eeprom



Eeprom: NO

You don’t need to buy eeprom (eraser can erase these eprom ) only can filter and install in dashboard or FEM and Avdi, BMW explorer or …….



Vvdi prog: YES

If it is cas4 you need to do cas and dash with vvdi prog



CAN filter: YES
If it is with fem you can use can filter and have also to do dash
R270: YES
You can use vvdi prog or r270



E-sys: YES

It can be cleared in custom kombi coding with esys



Cheapest way:

Program new EEPROM with Xprog, filter in Fem will be cheapest

Eraser is about $110



Easiest way:

X5 has fem
Can filter in dash is easiest.
Remove battery First



Btw, i think not possible change it in new type of key f15 without change to new key.

buy new bdc, then key will take km from there



You’d better read –

buy new FEM ( 490eu) , buy New Ecu if it diesel ( doesn’t matter which engine) , program the dash on new KM

update the car with ISTA ( latest version—- if you have) and car will get 100% new KM in all ECU



but if it diesel , then Buy New Engine Ecu also



but be careful because all Ecu and Fem come out from fabrik in latest version of ISTA , which can not be LOW DOWN with another tools,

if you have ISTA online , then can not be problem at all !!!



I know the guy who have ISTA online with own server , and never get problem ….ISTA online is cost for 1 year 1800 eu .



You might want to know –

OBD programming BMW FEM/BDC, Which tool is the best?

Which best for FEM/BDC mileage correction?

Which best for FEM/BDC key programming?

Look here:

Which tool is best for OBD programming BMW FEM BDC

Auro OtoSys IM100 adds JLR Chrysler Nissan Cars March 2018

4/2/2018


New updates on the Auro OtoSys IM100 tablet diagnostic and programming tool! (30/03/2018).

IM100 Jaguar Land rover software update to V2.22
Release date: 2018/03/20

Ineternational models:

Jaguar:
1.Added F-type 2014-2015 function: Add smart key, all smart keys lost, recover smart key
2.Added XF 2013-2015 function: Add smart key, all smart keys lost, recover smart key
3.Added XJ 2013-2015 function: Add smart key, all smart keys lost, recover smart key
4.Added a manual remote relearn method (For model SOVERIGN,S-type, XJ 2003-2007, XJR,X-Type machinery key)

Land rover:
1.Added Discovery4 2013-2014 function: Add smart key, all smart keys lost, recover smart key
2.Added Range Rover 2014-2015 function: Add smart key, all smart keys lost, recover smart key


Mitsubishi:
1.Optimized the procedure of Outlander 2008-2012 machinery key immobilizer
2.Optimized the procedure of Outlander 2013- smart key immobilizer
3.Optimized the procedure of Outlander -2010 machinery key immobilizer

Chrysler:
1.Optimized the procedure of Dodge Caravan 2010-2014 machinery key immobilizer
2.Optimized the procedure of Chrysler 300C 2011- machinery key immobilizer
3.Added Dodge Challenger 2015- smart key proximity-system


Nissan:
1.Optimized the procedure of ECU_SteeringWheel on the existed menu

auro-im100-march-2018-update-1

auro-im100-march-2018-update-2
http://www.obdii365.com/wholesale/auro-otosys-im100-automotive-diagnostic-tool.html

Cummins Inline 5 clone data link reviews

3/29/2018



Can I buy a Cummins Inline 5 data link adapter from Chinese? Any reliable site to have it?

Yep. Look here – it’s for those who are looking for a Cummins Inline 5 China clone.



Anyone has a good experience of Chinese inline 5? working or not?

Chinese inline 5 adapter is working well for diesel truck
Compatible with both XP and win7
Needs active
Can update, so far the SW is 7.6.2.

Chinese-Cummins-inline-5-review-1

I’m wondering if anyone has brought a Chinese inline 5 adapter and if it actually works.

Yes. i bought one about 2 years ago and have no problems…it cost 300 bucks Canadian….hope ya have better luck

Chinese-Cummins-inline-5-review-2

What’s the difference of Inline 5 the original and the China clone?

I bought a Chinese Cummins Inline 5 very similar to original, tried both on 12V with cummins insite 7.5 and service maxx v41. Picture original versus clone (original have protective lack paint and stamp on both side)

Chinese-Cummins-inline-5-review-3

Original

cummins-inline-5-original-pcb-1

Clone

cummins-inline-5-clone-pcb-1

Original

cummins-inline-5-original-pcb-2

Clone

cummins-inline-5-clone-pcb-2

http://blog.obdii365.com/2018/03/29/cummins-inline-5-clone-works-where-to/

How to install MINI VCI Toyota Techstream on VMware

3/29/2018


Here's the customer solution to install Toyota TIS Techstream on Virtual Machine.


TIS-Techstream is the Toyota factory diagnostic tool (Technical Information System)

This is a very useful tool to have if you are a DIY type owner. Tons of useful features and visibility to trouble codes that are not available in generic OBD2 standard scanners. You can also customize options and run various diagnostics and reset procedures.. Like tire pressure sensors...

I had this installed in the past when it would only run on XP and just went through the process again recently.

Thought I would document what I did real quick to help others out as things have changed over time and it has become much easier.

You can get this for about $20-$30. It's obviously not legal (especially for commercial use).. but the hacked versions are out there and available...

You can now install Toyota TIS on a 64bit OS like Windows10... but I found it much simpler to just install a 32 bit VM like windows 8.1 and go from there. I just don't trust the software enough to run it directly on the host OS...

The issue I kept running into on 64 bit is that most antivirus software will see the drivers as suspect and give you fits on 64bit. So if you are going to run a VM anyway.. why not just run 32bit and keep it simple.

Also. You will need a Type 2 hyper-visor (like VirtualBox or VMWare workstation player). MS hyper-V will not work as it is Type1 and does not allow access to USB devices directly.

So here is what I did.

Step 0. Buy a mini vci cable from obdii365.com. It is cheap and come with the drivers and a version of TIS.

1. Intstall VM Ware workstation player
https://www.vmware.com/products/play...valuation.html I did this on windows.. but you should be able to do this on OSx also (I have not tried)

2. Get a simple 32 bit x86 windows OS VM image here
https://developer.microsoft.com/en-u...dge/tools/vms/
I grabbed 8.1 just to keep it simple. These have a 90 day limit. But should last you a long time if you keep it paused...plus you can just snapshot and rollback...

3. Import the VM file into the player

4. Install the MVCI Driver for Toyota.msi
if you don't have this on the disk that came with the cable PM me and I can send you one.

5. Download the latest TIS here
Free Download Toyota TIS Techstream 12.00.127 Crack 100% Working No Need Atcivation | OBDII365.com Official Blog

6. Uncompressed it with the password listed:mhhauto.com. I think it is a rar file so you may need to grab winRar,7zip or something similar. Put the files into a directory of your choice. VMWare player supports something called unity mode on windows.. This allows you to simply drag and drop files between the host and guess OS as it presents each running app as a simple window.. so you can uncompress all the files are your host OS... and just drag them over.

7.Run the GTS_...exe in the directory created in step 6 on the guest VM

8. Copy the MainMenue.exe file (created in step 6) manually to C:\Program Files\Toyota Diagnostics\Techstream\bin overwriting the existing file (keep key.txt handy for step 12)

9. Install JavaRuntime here https://java.com/en/download/ on the guest OS

10. Plug in your MVCI cable. VMware will prompt you to enable it in the VM (it typically shows devices in the top right corner)

11. Your VM desktop should have a MVCI firmware update tool shortcut. Run that and click the INFO button to make sure you can communicate with the USB cable...

12. Start up Techstream. Go to Setup->Register Techstream Enter reg key from key.txt in step 8

The free version of VM ware player does not allow snapshots.. So a good idea is to make a full copy in Documents\Virtual Machines\[name] so you can rollback...


Credit to wfo9 from Toyota 4runer forum. We take no responsibilities for viruses.. that could exist in these files, but the VM isolation should keep you pretty safe from contamination.


<<Previous

    Author

    Write something about yourself. No need to be fancy, just an overview.

    Archives

    No Archives

    Categories

    All

    RSS Feed

Powered by
✕
